Description

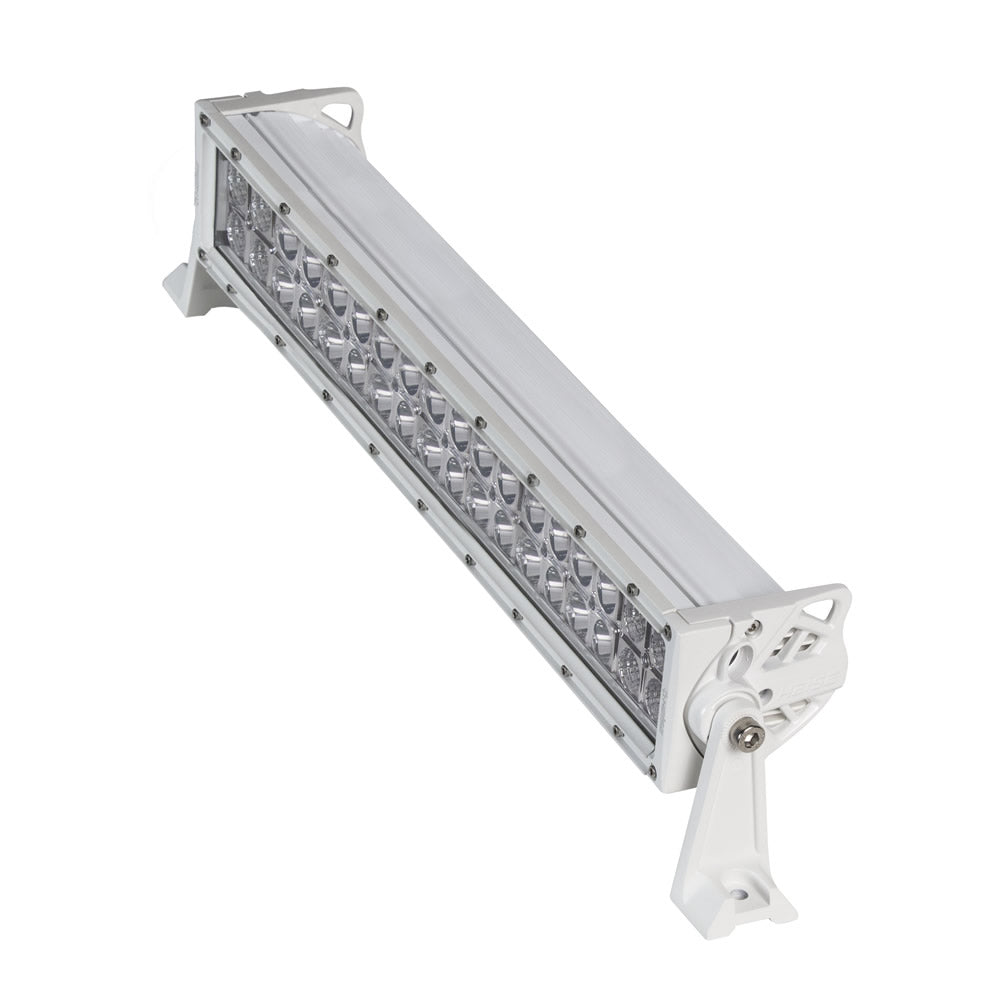

20" Dual Row Marine Bar
Specifications:
- Input Voltage: 10-30V
- Wattage: 108W
- Raw Lumens: 8640
- LUX @ 10M: 612
- Color Temperature: 6000K
- Beam Pattern: Combo: Flood (90°) / Spot (8°)
Construction:
- Housing Material: Die-cast Aluminum Housing
- Housing Color: White Coating with UV Inhibitors
- Membrane: Gore™
- Lens Material: PC
- Mounting Bracket: Die-cast Aluminum
- Hole Dimensions: Brackets turned inward - 19.50"
- Brackets turned outward - 21.75"
- Mounting Bolt Drill - .25"
- Height of Light Bar Itself: 4.8"
- Depth of Light Bar Itself: 3.50"
- Electronics: Integrated–Epoxy Encapsulated
- Hardware: Stainless 316
Operation:
- Operating Temperature: -40°C to +60°C
- Current Consumption: 5.7 Amps @ 13.8 Volts
- IP Rating: IP68
- Protections: Reverse Polarity
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : HEISE LED Lighting Systems
Manufacturer Part No : HE-MDR20
UPC : 086429365203
