Hubbell M5100c7 100a 480v Female Connector Body
- 1 auf Lager
- Nachbestellt, bald verfügbar
- Pay no sales tax outside of Michigan
- Free shipping on orders over $75
- 30 day return policy*
- 2 day shipping & overnight available. Call for rates! 248-895-6013

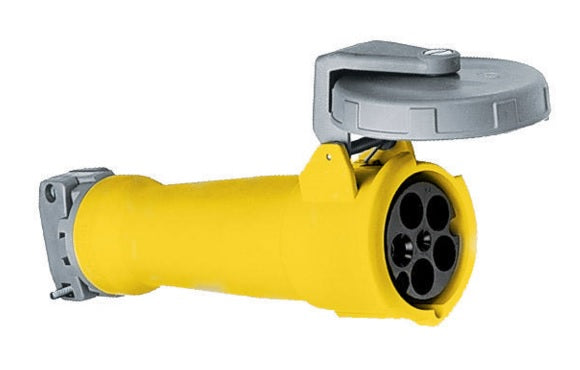

Hubbell M5100C 5-Wire 100 Amp 480 Volt Female Connector Body
Model: M5100C7- Insulated non-metallic housing
- Self-closing gasketed cover
- Color coded housings for easy identification
Heavy Duty Products, IEC Pin and Sleeve Devices, Marine Grade, Female, Connector Body, 100A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Yellow
Specifications| Number Of Poles | 4 |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Amperage Rating | 100 |
| Current Rating | 100 |
| Voltage Rating | Three Phase Y 277 VAC Three Phase Y 480 VAC |
| ConductorRange | #4AWG to #2AWG |
| Number Of Wires | 5 |
| NumberOfConductors | 5-Wire Grounding |
| Mates with | M5100P7 |
