Icom M605 25w Vhf Rear Mic Connector

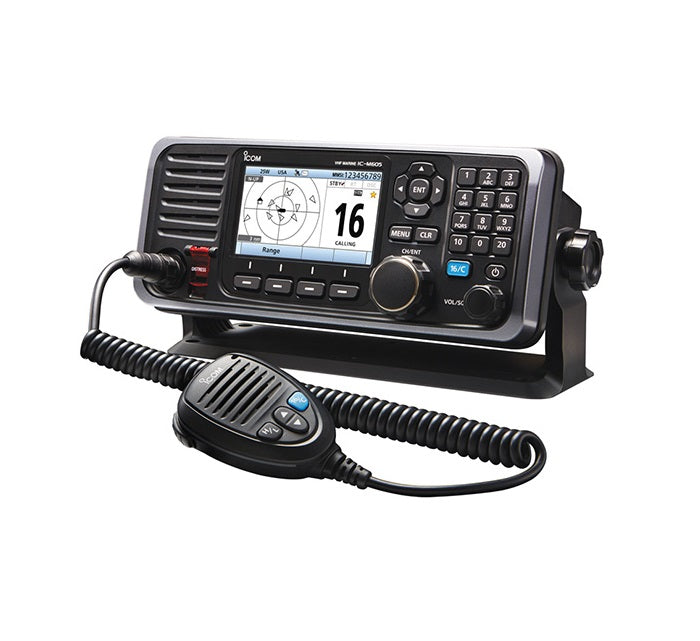

Icom M605 VHF fixed mount with color display and rear mic connector

• 4.3" wide color TFT LCD
• Night mode ensures readability in dark places
• Intuitive user interface
• NMEA2000™ and NMEA0183 connectivity
• Class D DSC
• Active noise cancelling
• Last call voice recording
• 30W listen back hailer
• Built-in horn/foghorn
• IPX8 submersible (1 m depth of water for 60 minutes)
• Dual and Tri-watch functions
• Weather channels with alert function
• DSC Multi-task function
• AquaQuake™ draining function
• Instant-access button for Channel 16 and call channel
• Supplied speaker microphone, HM-205RB can be connected to the rear panel

All functions of the IC-M605 (including DSC and distress operation) can be remotely controlled with up to three controllers, RC-M600 COMMAND HEAD and/or HM-195 series COMMANDMIC™, with an intercom function available among the main radio and controllers. The system allows for maximum operating flexibility anywhere on your boat.

A combination of the directional keypad and soft keys provides simple operation. Most used functions are assigned to soft keys (at the bottom of the display) for quick one push function access. The large ten-key pad enables you to smoothly enter channel numbers, MMSI numbers with ID names and so on.

The IC-M605’s internal speaker enhances intelligibility of received calls. The waterproof, paper speaker-cone provides superior sound quality with a wide frequency range and a flat frequency response for powerful, yet clear audio.

A weak signal adjacent to a strong signal can be clearly received by the IC-M605. Its commercial grade receiver performance (selectivity and IMD: more than 80 dB) provides reliable communication at all times.

The GNSS (GPS, GLONASS and SBAS) receiver is integrated in the IC-M605. Position information can be simply received with connection to the supplied GNSS antenna with 5 m cable, UX-241.

The Active Noise Canceling digitally removes background noise from both transmit and receive audio and provides clear communication in a noisy maritime environment.

When connected to the optional horn speaker, SP-37, you can talk with crews on the deck or shore from the radio’s microphone and can hear any reply via the horn speaker. Also available the RX hailer function and four patterns of automatic foghorn.

The last call voice recording function automatically saves up to two minutes of an incoming call. Don’t miss any incoming messages.

Using NMEA 2000™ connectivity, the radio can exchange GNSS, AIS reports, DSC call information data, radio frequency and PGN list data on the network. NMEA 0183/-HS GNSS position data can also be converted to NMEA 2000™ data for other equipment

With an optional voice scrambler unit, UT-112, the IC-M605 provides 32 tone secure conversation. This function is useful when you want to share private information with consort ships.

• M605
• Hand microphone (HM-205RB)
• GNSS antenna (UX-241)
• PC power cable
• Mounting bracket kit
• OPC2384 Adapter Cable
