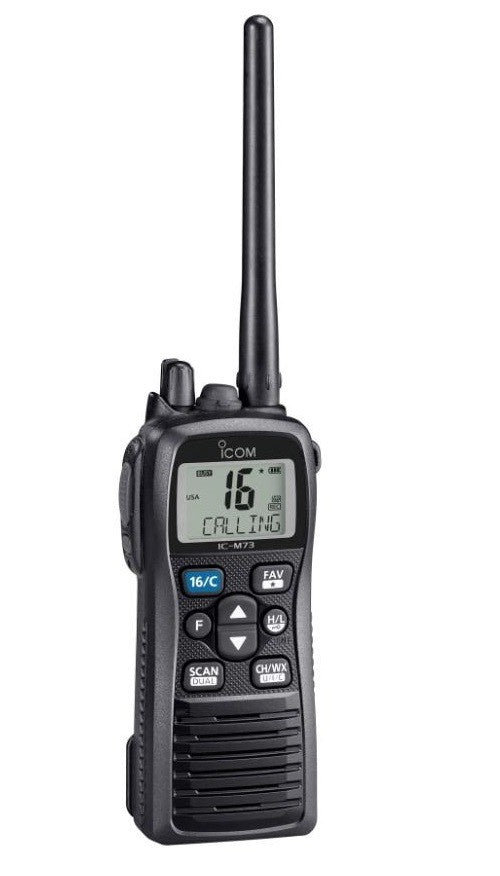

Icom M73 Hand Held Vhf
- Auf Lager
- Nachbestellt, bald verfügbar
- Pay no sales tax outside of Michigan
- Free shipping on orders over $75
- 30 day return policy*
- 2 day shipping & overnight available. Call for rates! 248-895-6013
Slim, hourglass body and wide viewing angle LCD
The IC-M73 has a stylish, ergonomic design. A durable and rugged body provides for user-friendly operation and long life. A wide viewing angle, high intensity LCD offers bright, easy to read characters.
IPX8 Submersible Plus™
The IC-M73 continues to offer Icom's best waterproof protection. The radio has been tested to survive after being submersed in 1.5m (4.9ft) depth of water for 30 minutes.
700mW Loud audio
The IC-M73 uses a BTL (bridge-tied load) amplifier that doubles the audio output. Its internal speaker delivers a loud 700mW audio output with clear sound.
6W RF Output power
The IC-M73's 6 Watts of transmit power will provide extended communication range for the user. A large capacity Lithium-Ion battery allows for 16 hours of operation, under normal conditions*. * Typical operation with 5:5:90 duty ratio. 18 hours for basic version.
Specifications
| General | |
|---|---|
| Frequency Range Tx Rx | 156.025-157.425MHz 156.050-163.275MHz |
| Usable channel groups | INT, USA, CAN, WX channels |
| Type of emission | 16K0G3E (FM) |
| Current drain (at 7.4V DC) Tx (at 6W output) Rx (Max. audio (Int SP/Ext SP) | 1.5A typical 450mA/250mA |
| Operating temperature range | -20°C to +60°C; -4°F to +140°F |
| Antenna Impedance | 50Ω (STUD) |
| Dimensions (WXHXD) (Projections not included) | 52.5X125X30 mm 2.07X4.92X1.18 in |
| Weight (approx.) | 320g; 11.3oz (With BP-245N, FA-S64V, MB-103) |
| Transmitter | |
|---|---|
| Output power (Hi/Low) | 6W/3W/1W |
| Max. frequency deviation | ± 5.0 kHz |
| Frequency error | ±10ppm |
| Audio harmonic distortion | Less than 10% (at 60% dev.) |
| Spurious emissions | -68dBc |
| Adjacent channel power | 70dB |
| Audio harmonic distortion | Less than 10% (at 60% dev.) |
| Residual modulation | 40dB |
| Receiver | |
|---|---|
| Sensitivity | 0.22μV typ. (at 12dB SINAD) |
| Squelch sensitivity | 0.35 V typ. (at threshold) |
| Adjacent Channel Selectivity | 70dB typical |
| Spurious response | 70dB typical |
| Intermodulation | 70dB typical |
| Hum and noise ratio | 40dB typical |
| Audio output power Internal speaker |
700mW typ. (at 10% distortion, 8Ω load) |
COMES WITH
- Cigarette lighter cable (CP25H)
- AC adapter (BC123SA)
- Rapid charger (BC210)
- Battery pack (BP245N)
- Belt clip (MB103)
- Antenna (FAS64V)
- Hand strap
- Owner's manual
- Warranty: 3 years
