Description

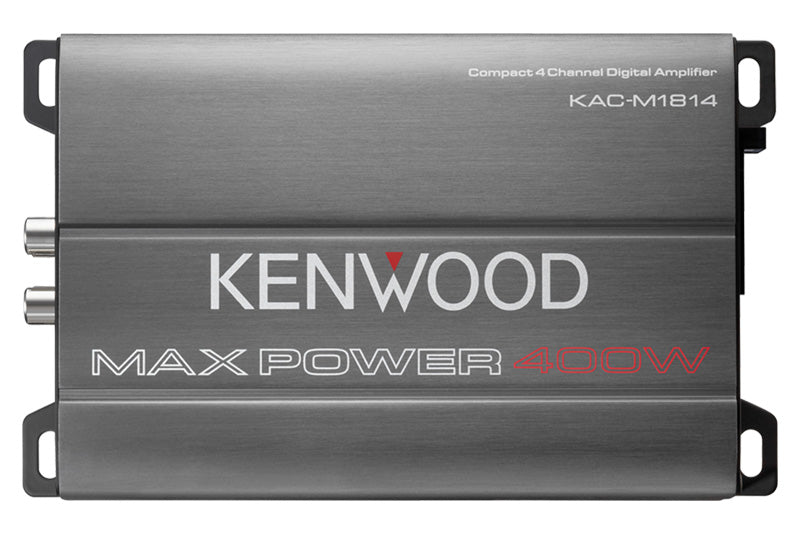

Kenwood KAC-M1814 400W Class D
Model: KAC-M1814- Peak Power 400W
- Conformal Coating for Marine and Other use.
- Speaker Level Input with Signal Sensing Turn on.
- Bridgeable Connection.
KAC-M1814 Compact Class-D amplifier supports louder volume for Car, Marine and Motorsports users with low-noise.
Plastic covered connector helps to keep out water and dust.
Conformal Coating provides vibration resistance and helps prevent the PCB from rusting.
Pre-amp and Power-amp sections are separated to reduce radiation noise.
SpecificationsAmplifier Type | Class D |
CEA-2006 Primary Ratings | |
Power Output | 45Watts RMS x 4 at 4 Ohms, ?1%THD+N |
Signal-to-Noise Ratio | 82dBA (Reference: 1Watt into 4Ohms) |
Maximum Power Output | |
MAX POWER | 400W |
RMS Power at 14.4V | |
A/B (2 Ohms) | 45Watts RMS x 4 at 4 Ohms, 1kHz , ?1% THD+N |
A/B (Bridged 4Ohms) | 90Watts RMS x 2 at 4 Ohms, 1kHz, ?1%THD+N |
Signal to Noise Ratio | 98dB (Reference: Rated Power into 4Ohms at 14.4V) |
Frequency Response | 20Hz-20kHz (+0dB, -1dB) |
Input Impedance | 10k ohm |
Speaker Impedance | Speaker Impedance |
Bridged Connection | 4? to 8? allowable |
Low-pass Filter | 50-200Hz, -12dB/oct (A/B CH) |
High-pass Filter | 50-200Hz, -12dB/oct (A/B CH) |
RCA Input Sensitivity | 0.2 (V) - 5.0 (V) |
Speaker Level Input Sensitivity | 4.0 (V) - 12.0 (V) |
Terminal | |
Connector with DC Cable | Yes |
RCA | A/B |
Dimensions(WxHxD) | Dimensions(WxHxD) |
General | |
Weight? (kg) | 0.7 [kg] 1.5 [lbs] |
Operating Voltage | 14.4V?11-16V allowable? [V] |
Current Consumption | 15 [A] |
Key Features | CTA-2006 Compliant |
Accessroies | |
DC cable?1.5m (5 ft) | ? 1pc |
RCA cable?1m (3.3 ft) | ? 2pcs |
Self-tapping screws??4x 16 mm | ? 4pcs |
Wire band?350mm (13-3/4 inch) | ? 2pcs |
Wire band?100mm (3-15/16 inch) | ? 2pcs |
Protective cover | ? 2pcs |
